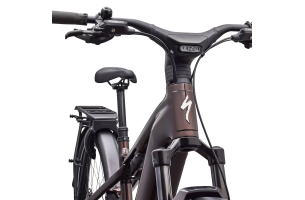

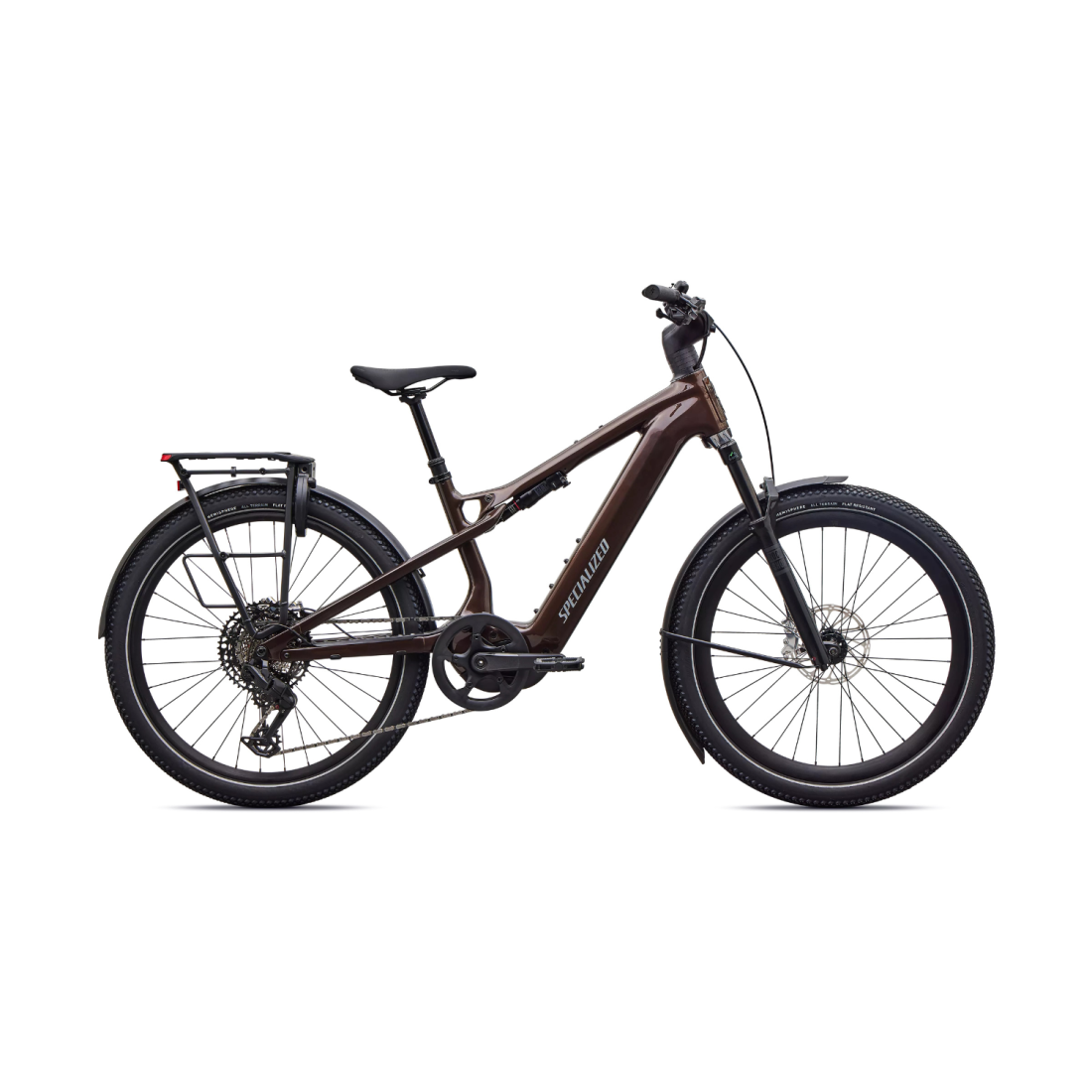

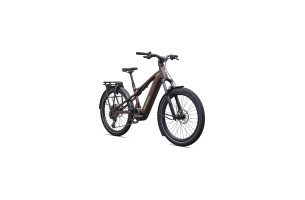

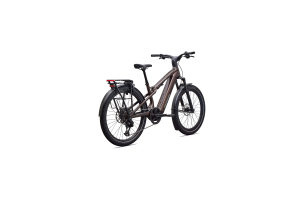

Turbo Vado 3 X 5.0

E-Bike

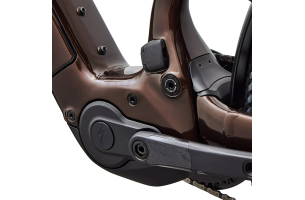

Motor

Specialized 3.1 Motor, 105Nm torque, 810W power

Charger

Specialized 4amp charger

Battery

Specialized Turbo 840Wh integrated battery pack

UI/Remote

Turbo ergonomic remote

Frameset

Seat Binder

Alloy, 38.6mm

Frame

Vado X frame, premium comfort with 120mm rear travel, side entry battery

Suspension

Rear Shock

Rock Shox Delux Select rear suspension, 120mm of travel

Fork

Rock Shox Psylo suspension fork, extra comfort and sensitivity, 130MM of travel, 15MM Thru axle, 27.5 wheel

Brakes

Front Brake

SRAM DB6, extra power 4 pistons, with custom silver finish

Rear Brake

SRAM DB6, extra power 4 pistons, with custom silver finish

Drivetrain

Crankset

170mm, CL 55mm, w/BCD 110mm, 48t, chain guard

Cassette

SRAM 12-speed,10-52t

Chainrings

SRAM CR T-Type 110 BCD 48t

Chain

SRAM Eagle 130 Link

Shift Levers

SRAM Eagle 70

Rear Derailleur

SRAM Eagle 70 Transmission, 12-speed, easy shift under load

Wheels & Tires

Rims

27.5 Specialized rim with high profile, balck brush finish

Spokes

DT Swiss Elemental

Inner Tubes

Reinforced anti-flat 27.5X2.5/2.7, Schrader valve 60mm

Front Hub

Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h

Front Tire

Specialized Hemisphere Flat Resistant ALLTERRAIN Reflect 27.5X2.6

Rear Tire

Specialized Hemisphere Flat Resistant ALLTERRAIN Reflect 27.5X2.6

Rear Hub

Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 32h, HG Steel Fhb

Cockpit

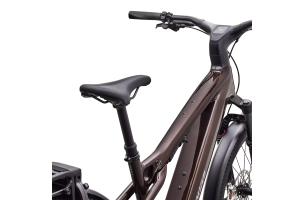

Saddle

Body geometry, Rivo 2 Gel,168mm

Stem

Cockpit with integrated colored touch screen display

Handlebars

Integrated cockpit

SeatPost

Seatpost, Lowerable, 34.9mm, Offset 0mm, 100/125/150 Travel

Grips

Specialized Body Geometry

Accessories

Rack

20kg rear rack with integrated straps, QL3.1, MIK Stud, Arkel

Kickstand

Adjustable alloy kickstand

Bell

Bell

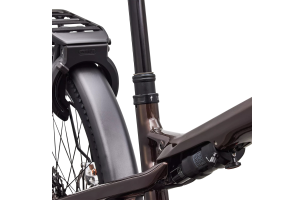

Fenders

Extra long fender, water diffusion, durable metal construction

Bike Lock

Key secured battery by Abus

SWAT

MIK 20 Kg rear rack with integrated elastics, MIK front rack 10kg compatible (not included)

Taillight

Rack integrated, automatic braking detection

Headlight

SUPERNOVA, integrated light, high beam and low beam remote, adjustable 12°, up to 800 Lumens

Pedals

Turbo pedals anti-slip

Product Details

Product ID

93145

Compliance Certification

As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)

Weight

Weight

31.35 kg (69 lb, 1.8 oz)

Weight Size

MD
